Floco: Federated Learning over Connected Modes¶

Paper: https://openreview.net/pdf?id=JL2eMCfDW8

Authors: Dennis Grinwald, Philipp Wiesner, Shinichi Nakajima

Abstract: Statistical heterogeneity in federated learning poses two major challenges: slow global training due to conflicting gradient signals, and the need of personalization for local distributions. In this work, we tackle both challenges by leveraging recent advances in linear mode connectivity — identifying a linearly connected low-loss region in the parameter space of neural networks, which we call solution simplex. We propose federated learning over connected modes (Floco), where clients are assigned local subregions in this simplex based on their gradient signals, and together learn the shared global solution simplex. This allows personalization of the client models to fit their local distributions within the degrees of freedom in the solution simplex and homogenizes the update signals for the global simplex training. Our experiments show that Floco accelerates the global training process, and significantly improves the local accuracy with minimal computational overhead in cross-silo federated learning settings.

About this baseline¶

What’s implemented: The code in this directory implements the method Floco and Floco+.

Datasets: CIFAR-10

Hardware Setup: We trained the models used for the plots below on an Apple M1 Pro chip.

Contributors: Dennis Grinwald (dennis.grinwald@tu-berlin.de), Philipp Wiesner (wiesner@tu-berlin.de).

Experimental Setup¶

Task: Image Classification

Model: This repository implements a two-layer CNN as in McMahan et al. 2017. Additional models can be implemented by changing the base_model attribute in the SimplexModel class in floco/model.py.

Dataset:

Feature	Value
Dataset	CIFAR-10
Partition	Dirichlet and Fold split
Number of Partitions	100 clients
Data points per client	500 samples

Training Hyperparameters:

Hyperparameter	Value
batch size	50
learning rate	0.02
learning rate scheduler	static
optimizer	sgd
momentum	0.5
nesterov	False
weight decay	5e-4
clients per round	30
local epochs	5
personalized epochs	5
rho (l1-ball radius)	0.1(Fold) / 0.3(Dirichlet)
tau (=round of projection)	250
M (=number simplex endpoints)	10

Environment Setup¶

Through regular pip¶

# Create a python env
pyenv virtualenv 3.10.14 floco

# Activate it
pyenv activate floco

# Install project including packages
pip install .

Running the Experiments¶

In order to run using the default settings, simply run:

Through your environment¶

flwr run .

This will run Floco on the Dirichlet(0.5) split. If you want to test other splits, you can specify which config you want to use. For example, if you would like to test Floco⁺ on the CIFAR-10 Five Fold split from the original paper, simply run:

flwr run . --run-config conf/cifar10_fold_floco_p.toml

If you want to run the benchmark shown int the Figures below, simply run:

bash ./run.sh

This will run FedAvg, Floco and Floco⁺ on the CIFAR-10 Five-Fold and Dirichlet(0.5) split.

Expected Results¶

In order to generate the result plots shown below, run:

python floco/plot_results.py

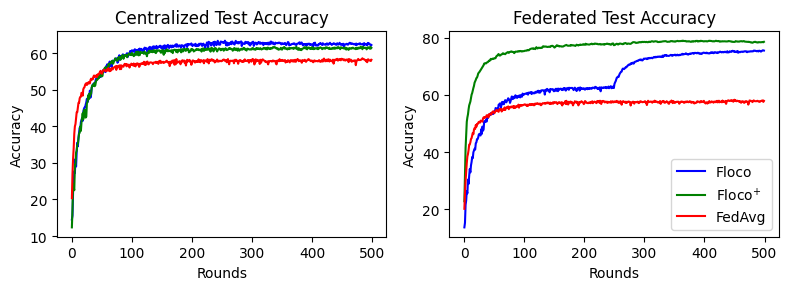

CIFAR-10 Five-Fold split¶

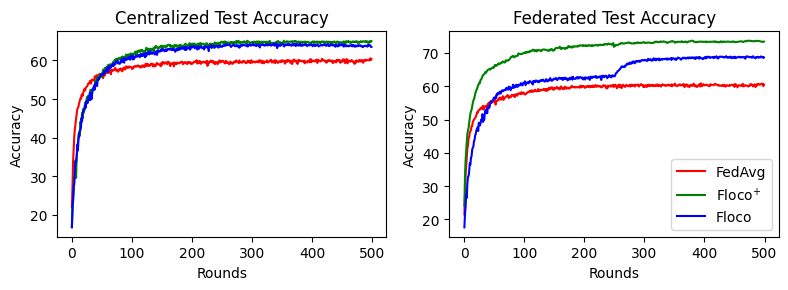

CIFAR-10 Dirichlet split¶

How to cite this work¶

Bibtex¶

@inproceedings{grinwald2024floco,
  title={Federated Learning over Connected Modes},
  author={Grinwald, Dennis and Wiesner, Philipp and Nakajima, Shinichi},
  booktitle={The Thirty-eighth Annual Conference on Neural Information Processing Systems (NeurIPS'24)},
  year={2024},
  url={https://openreview.net/forum?id=JL2eMCfDW8}
}
