Create and Manage Federations on SuperGrid

This guide shows how to create and manage federations in SuperGrid. A federation is a workspace for a group of users and the SuperNodes that can take part in Flower runs.

참고

This guide assumes you already have a Flower account on flower.ai and can access SuperGrid.

SuperGrid supports two federation types:

• Simulation federations run Flower Apps with simulated SuperNodes. Use this when you want to test or iterate on an app before connecting real SuperNodes.

• Deployment federations run Flower Apps on connected SuperNodes.

참고

Deployment federations require deployment access. Contact hello@flower.ai to request it.

All federation members can see runs launched by other members. They can also launch new runs in the federation.

Create a Federation

Open SuperGrid and go to the Federations page. Choose whether you want to create a simulation federation or a deployment federation, then provide the federation name and the required configuration.

참고

There is no limit on the number of federations you can create.

To create a simulation federation, click New Federation, select Simulation, choose a federation name, set the number of simulated SuperNodes, and click Create. You can change the number of simulated SuperNodes later if needed. To begin with, start with a small number of SuperNodes, such as 5 or 10, to keep runs fast.

For a deployment federation, choose Deployment instead of Simulation when creating the federation. Choose a meaningful name and click Create.

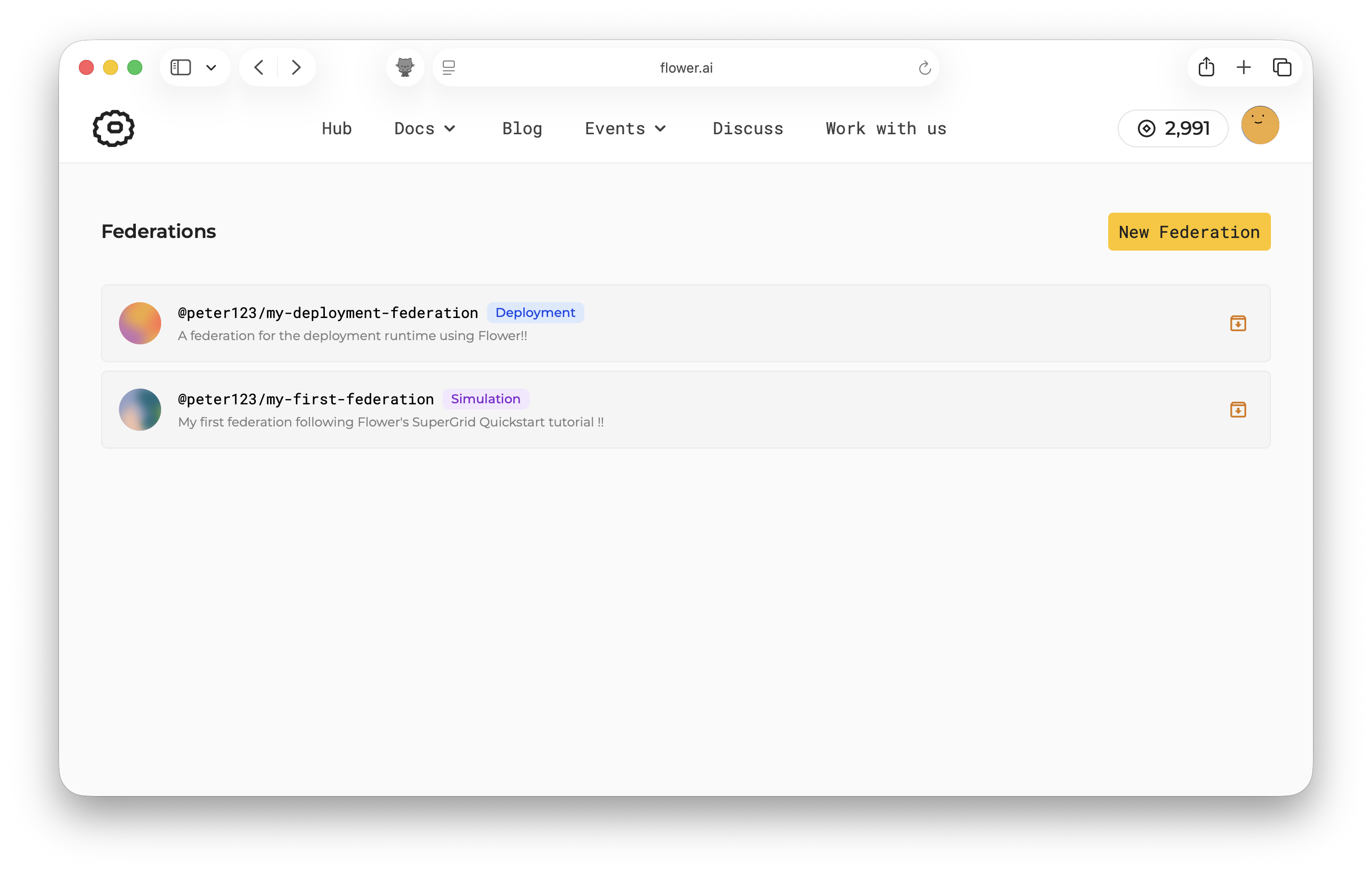

In the federations dashboard, you can identify the type of each federation by the label next to its name. The screenshot below shows two federations, one for simulation and one for deployment.

For deployment federations, you also need to add SuperNodes to the federation. You can add your own SuperNodes now by following the guide on how to connect SuperNodes to SuperGrid, or you can do it later. SuperGrid federations become most useful when several members collaborate on runs, each with their own SuperNodes. The next section shows how to invite other users to join.

Manage a Federation

After creating a federation, the owner can invite other Flower users to collaborate. Invited users become federation members after accepting the invitation. Members can connect their own SuperNodes, inspect runs launched in the federation, and submit their own runs.

Federation ownership controls administrative actions:

• The owner can invite users.

• The owner can remove users from the federation.

• The owner can archive the federation when the collaboration is complete.

• Members can leave the federation themselves.

Invite Users

Invite users when you want multiple people to collaborate in the same federation, inspect runs, launch new runs, and contribute their own SuperNodes. You can invite users to both simulation and deployment federations, but only deployment federations can have real SuperNodes connected to them.

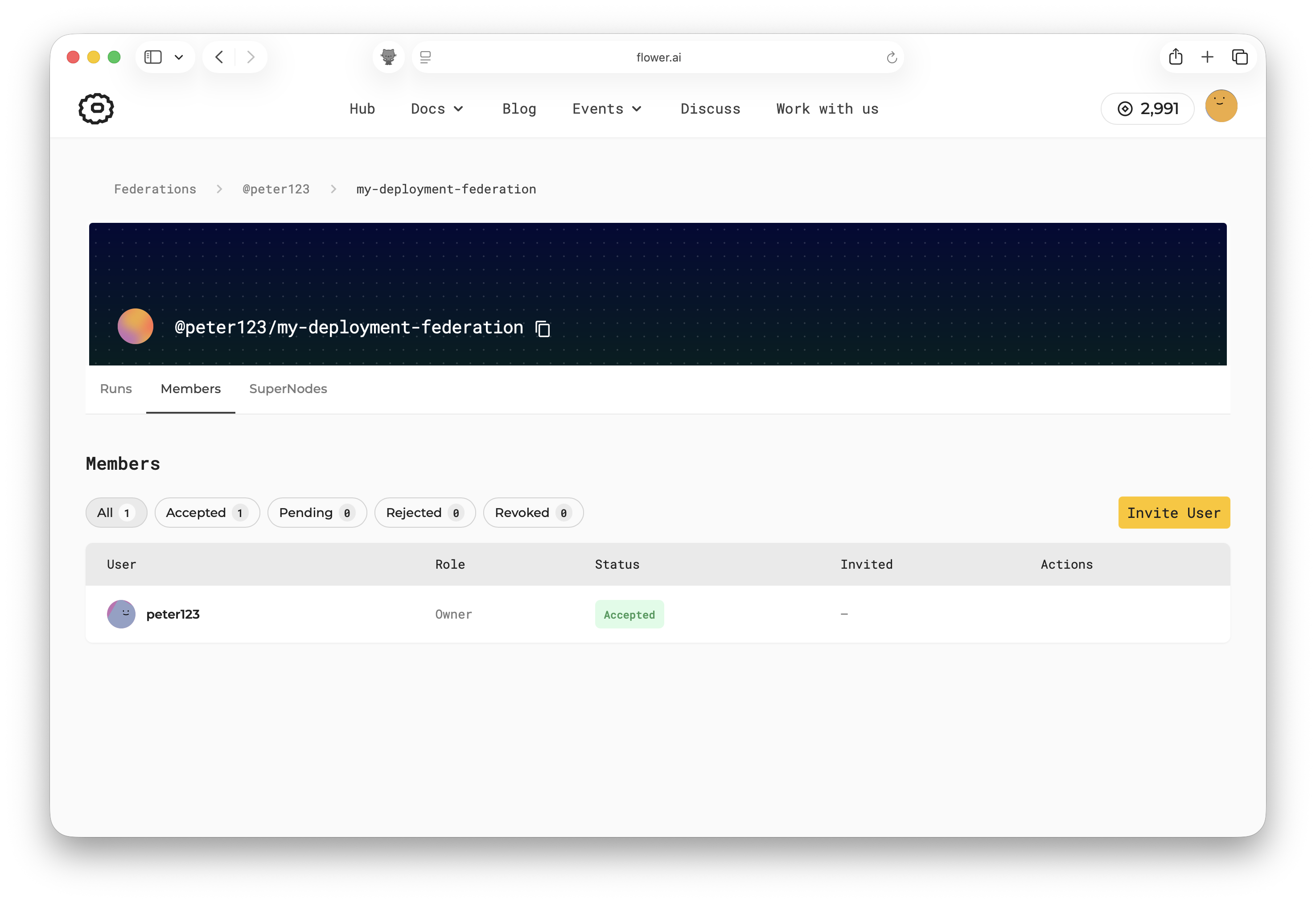

Open your federation and navigate to the Members tab. If this is a new federation, you will see only your own account listed as the owner.

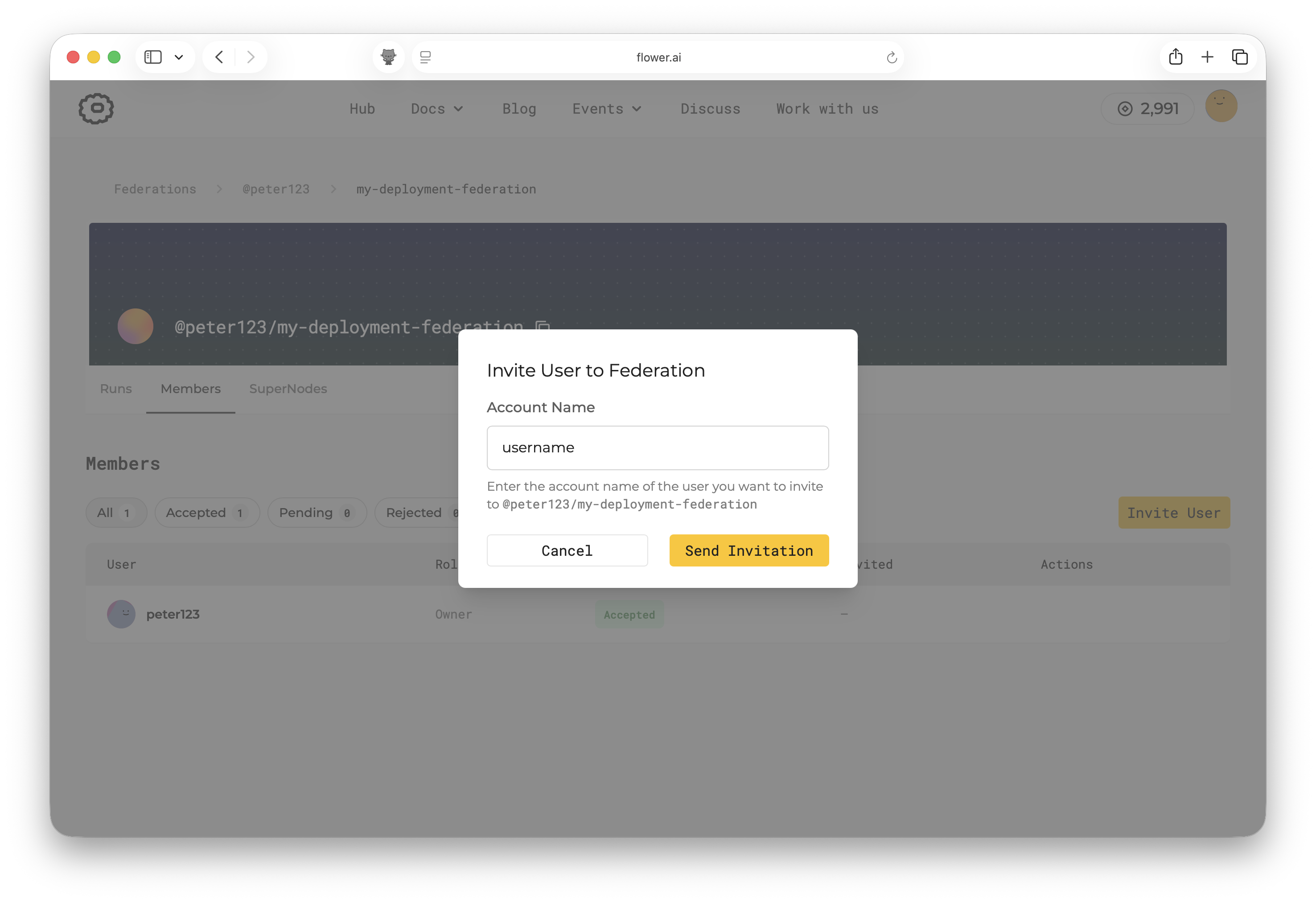

Click Invite User, enter the username of the Flower account you want to invite, and click Send Invitation.

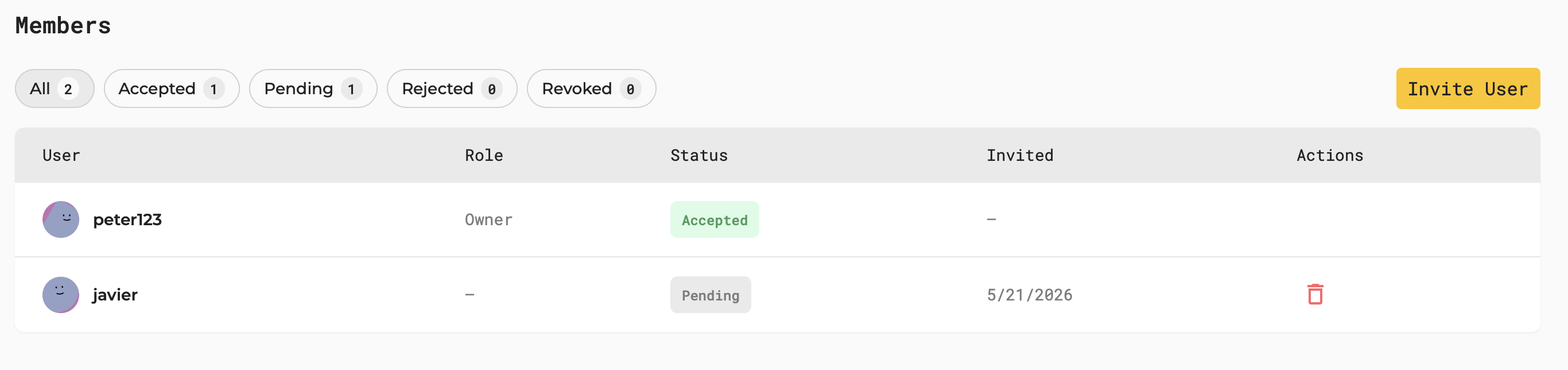

The invitation appears in the member list with status Pending until the invited user accepts it. While it is pending, the owner can revoke the invitation by clicking the delete icon.

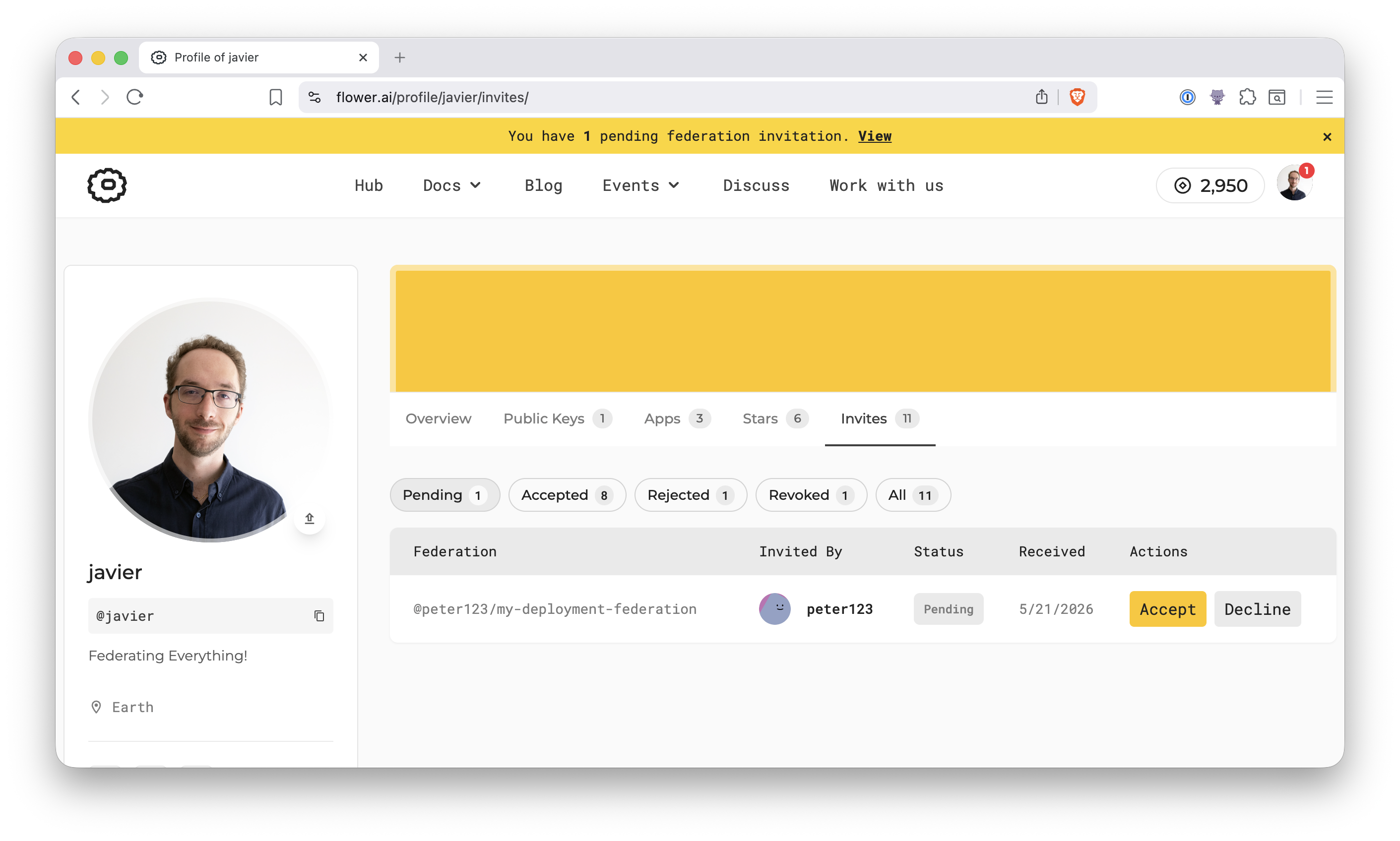

The invited user will see the invitation when they sign in to flower.ai and open their profile page. The invitation shows the federation name and the username of the user who sent it.

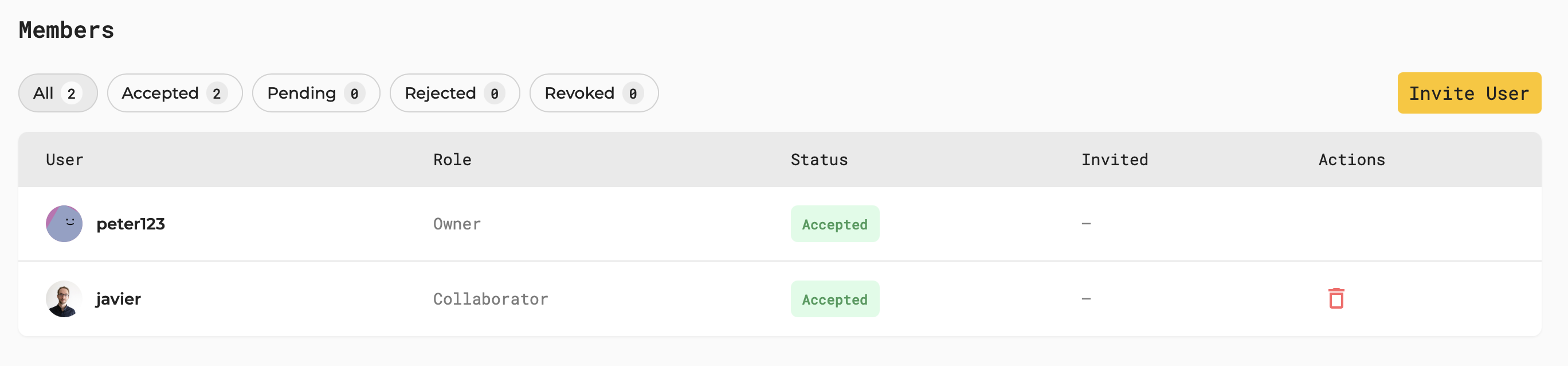

After accepting the invitation, the user becomes a member of the federation. From that point on, the user can see the federation in their dashboard, inspect runs, launch new runs, and, for deployment federations, connect their own SuperNodes. Members can leave the federation at any time.

Archive a Federation

Archive a federation when a project or collaboration has ended. Only the federation owner can archive it.

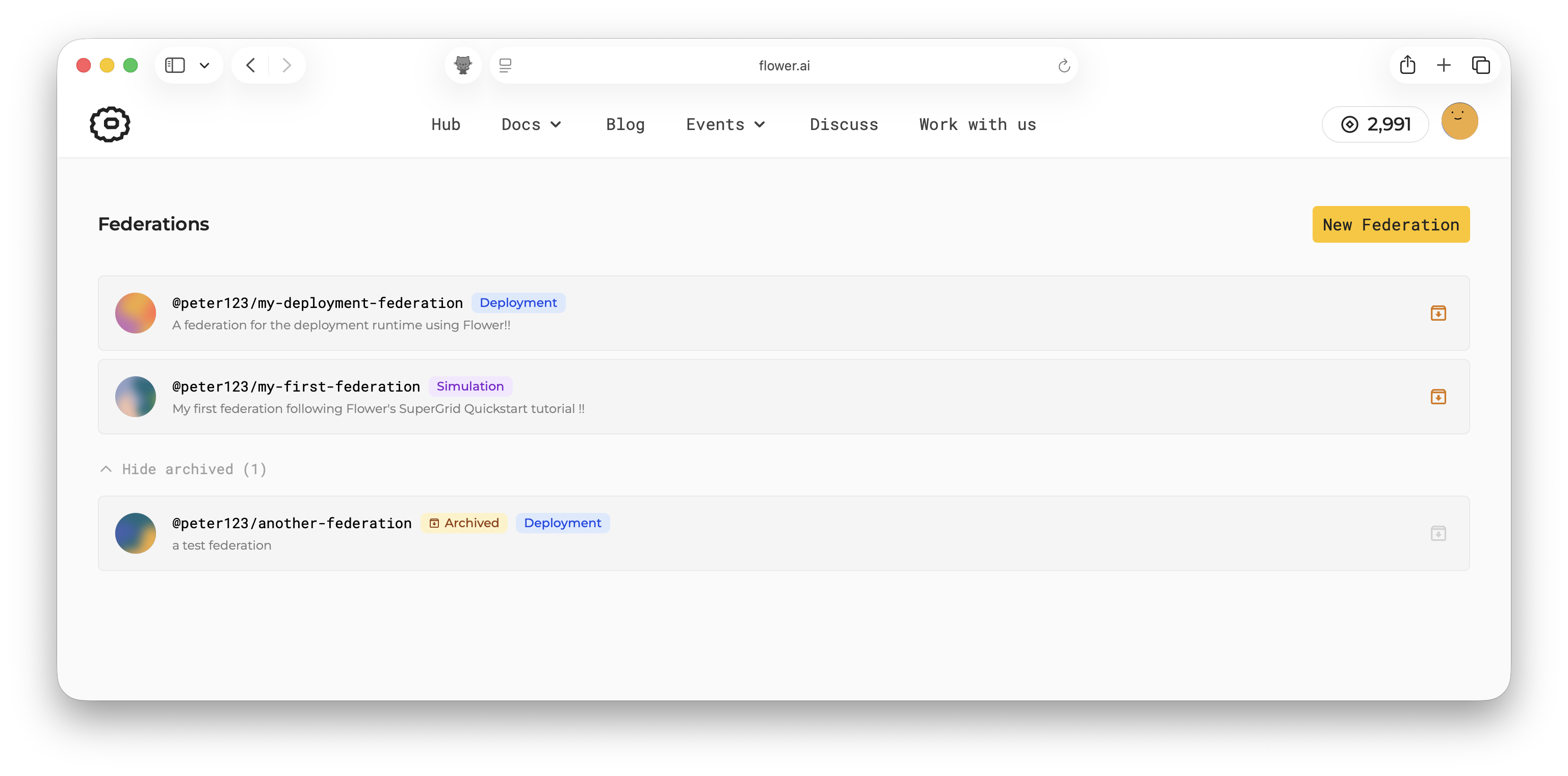

To archive a federation, click the archive icon shown in the federations dashboard. After confirming, the federation is archived and moved to the archived federations list. The screenshot below shows @peter123/another-federation after it has been archived.

Before archiving a federation, make sure the collaboration is complete and members no longer need to launch workloads in it. Once archived, the federation is kept as a historical record instead of an active workspace. New runs cannot be launched, and users or SuperNodes can no longer be added or removed.
