Run Flower on GCP

A step-by-step guide to learn how to create, deploy and run a Flower app on the Google Cloud Platform (GCP) using the Google Kubernetes Engine (GKE). The figure below presents an overview of the architecture of the Flower components we will deploy on GCP using GKE.

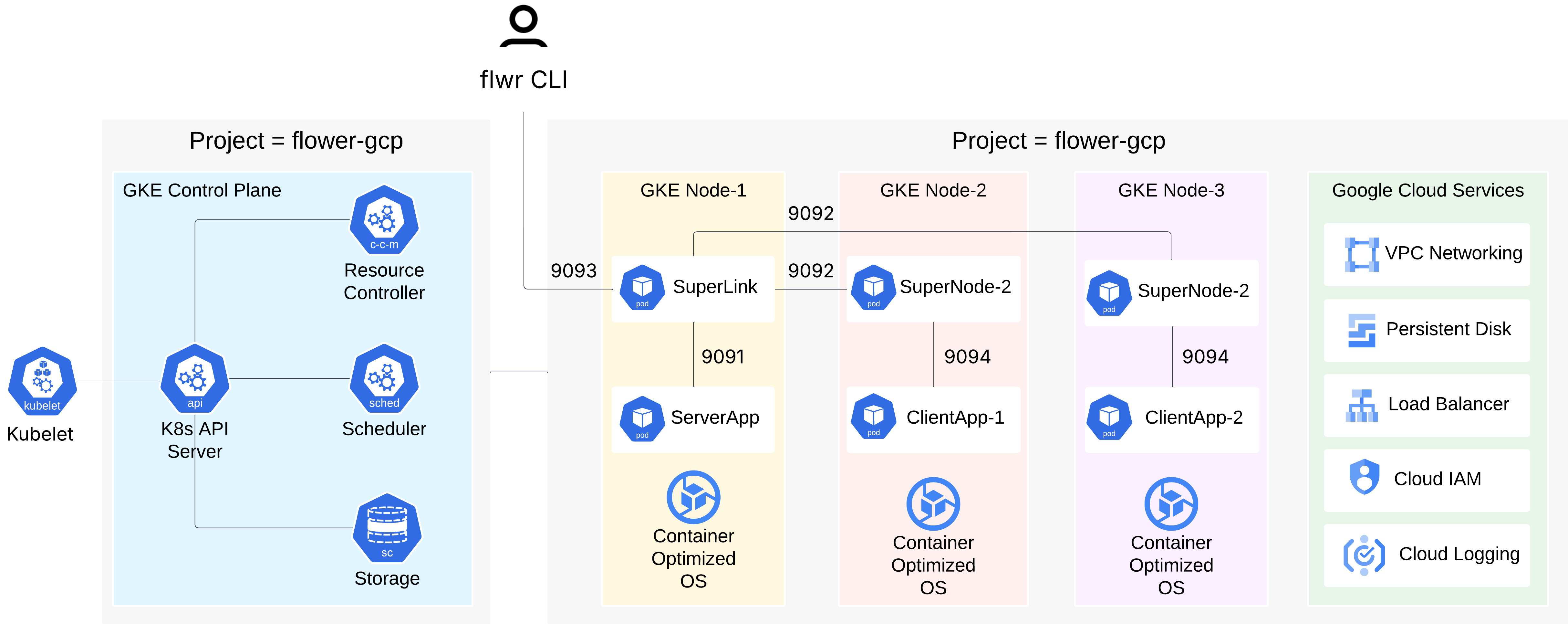

Running Flower on GCP using GKE Architecture

Part of this guide has also been presented during the Flower AI Summit 2025, by Prashant Kulkarni, GenAI Security Engineer at Google Cloud.

Create a Kubernetes Cluster

Here, we outline the steps to create a Kubernetes cluster in GCP through the GCP user interface. Before proceeding, please make sure you have an account on GCP.

1. Create GCP Project: Once you have created the account, please create a new project, by selecting the project picker button, i.e., the button with the project name appearing at the top of the page. This will open a new window from where you can press the NEW PROJECT button and create the new project and assign a name, e.g., flower-gcp. Before proceeding to the next step, please ensure that the flower-gcp project is selected in the top left corner.

2. Enable Kubernetes API: After the GCP project is created, in the search bar at the top of the GCP page type Kubernetes Engine API and click on it (it has an API icon). This will redirect you to the Kubernetes Engine API Product page. From there you need to select Enable; if you see a Billing required pop-up, please check with your administrator to continue, if necessary. After you enable it you should see a green mark in the Kubernetes Engine API saying API Enabled.

3. Create Kubernetes Cluster: in the home page of the GCP project, under the Products section, look for the tab called Create a Kubernetes Cluster. This will redirect you to a page where you will see an overview of the existing Kubernetes clusters. At the top of the page you should see a button called Create cluster. By default, the Kubernetes clusters are deployed using the Autopilot mode. For the current guide, we use the Autopilot mode.

4. Configure Kubernetes Cluster: in the page that is shown, we assign a name to the new cluster, e.g., flower-numpy-example and we select the region, e.g., us-central1. For the rest of the configuration settings, such as Cluster Tier, Fleet Registration, Networking, and other settings we use the default values. Now, press the Create button.

Note

Please wait for a couple of minutes until the cluster is ready and fully deployed.

Configure Google Cloud SDK

To interact with our newly deployed Kubernetes cluster, we will use the Google Cloud SDK and configure it locally. This SDK allows us to directly interact with GCP and in turn with our recently deployed Kubernetes cluster.

To install the Google Cloud SDK, we first need to install and configure the gcloud CLI:

# macOS
curl https://sdk.cloud.google.com | bash  # and then follow on-screen prompts

# macOS (w/ Homebrew)
brew install --cask google-cloud-sdk

# Windows
# Download the Windows installer from the Google Cloud SDK page
# https://dl.google.com/dl/cloudsdk/channels/rapid/GoogleCloudSDKInstaller.exe
# Run the .exe installer and follow the on-screen instructions

# Once the package is installed (e.g., using brew), we initialize gcloud as follows:
gcloud init  # initialize with gcloud init.
gcloud version  # verify installation

Note

For more detailed installation instructions and for installing gcloud for different operating systems, please take look at the official gcloud CLI installation page https://cloud.google.com/sdk/docs/install

Once gcloud is installed we need to install kubectl, which is a command-line tool to interact with Kubernetes clusters:

gcloud components install kubectl
kubectl version --client  # this will show the installed versions of the Client and Kustomize

Before proceeding with the next steps, please make sure that you have an active account selected, otherwise you will receive a ERROR: (gcloud.container.clusters.get-credentials) when running the commands below. To obtain new credentials or select an already authenticated account please run the following commands

gcloud auth login  # to obtain new credentials
gcloud config set account <ACCOUNT>  # to select an already authenticated <ACCOUNT> that you want to use

Now you need to set the project property in your current workspace using the unique project identifier, which can be found under the ID column when clicking on the project picker.

# glocud config set project
gcloud config set project <YOUR_PROJECT_ID>  # <YOUR_PROJECT_ID> is not the project name but the project identifier, e.g., flower-gcp-XXXXXX

Note

The <YOUR_PROJECT_ID> value will be different for each user, e.g., flower-gcp, flower-gcp-XXXXXX. Its value will be used in subsequent steps, e.g.,

The next step is to configure kubectl to point to the GKE cluster you created in the previous steps by using the name of the cluster, e.g., flower-numpy-example, and the name of the region where the cluster was created:

gcloud container clusters get-credentials flower-numpy-example --region us-central1

This will configure the required metadata and fetch the necessary credentials to allow your local kubectl to communicate with the GKE cluster. To verify that kubectl was able to connect to the cluster and get the necessary information, you can run the following command:

kubectl config current-context  # this should return the Kubernetes cluster you are connected to

Note

For more information on how kubectl works, please have a look at the following official quick-reference guide.

Create a Google Artifact Registry

The Google Cloud Artifact Registry is a fully managed, scalable, and private service for storing and managing software build artifacts and dependencies. Consequently, to run our Flower app on the GKE cluster, we need to store the app's specific Flower Docker images within the registry, i.e., ClientApp and ServerApp, which we discuss in the next section. For typical use-cases, the Flower SuperLink and SuperNode Docker images do not need to be built and can be pulled directly from the official Flower DockerHub repository. This step is crucial as it enables the cluster, and subsequently the Pods, to download the built Docker images and deploy the necessary Flower components. Please see below the instructions on how to create the repository using the gcloud CLI:

# Enable the Artifact Registry API service
gcloud services enable artifactregistry.googleapis.com

# Create the repository
# gcloud artifacts repositories create <YOUR_REPOSITORY_NAME>
gcloud artifacts repositories create flower-gcp-example-artifacts \
    --repository-format=docker \
    --location=us-central1

# Configure Docker to Authenticate with Artifact Registry, e.g.:
#   gcloud auth configure-docker <YOUR_REGION>-docker.pkg.dev
gcloud auth configure-docker us-central1-docker.pkg.dev  # we use us-central1 as our region

Registry Validation & Permissions

The steps below validate that the Google Artifact Registry has been properly configured, you have correct access and you have writing permissions to push the docker images discussed in the next section.

gcloud artifacts repositories list --location=us-central1  # this will list the items under the project with ID <YOUR_PROJECT_ID>

The above command shows that the flower-gcp-example-artifacts repository has been successfully created under the specified project with ID <YOUR_PROJECT_ID>. Finally, you need to update your role and assign writing permissions to the artifact registry. To accomplish this, please run the following command:

gcloud projects add-iam-policy-binding <YOUR_PROJECT_ID> \  # <YOUR_PROJECT_ID> is the ID of the project
    --member="user:<YOUR_EMAIL@DOMAIN.COM>" \
    --role="roles/artifactregistry.writer"

Configure Flower App Docker Images

In order to proceed with this next step, first, we create a local Flower app, and then create a dedicated Dockerfile for the ServerApp and the ClientApp Docker images. Once we build the images, we tag them and push them to the newly created Google registry. Most of the steps on how to build Docker images discussed below are based on the Flower Quickstart with Docker Tutorial.

We create the Flower NumPy app as follows:

# flwr new <YOUR_APP_NAME> --framework <YOUR_ML_FRAMEWORK> --username <YOUR_USERNAME>
flwr new flower-numpy-example --framework NumPy --username flower

Create Docker Images

Once the app is created, we navigate inside the app directory (i.e., where the pyproject.toml file is) and create two Dockerfiles one for the ClientApp component, named clientapp.Dockerfile and one for the ServerApp component, named serverapp.Dockerfile. We will use both files to build locally the necessary Docker images. We will be using the default images for SuperLink and SuperLink available in the Flower DockerHub repository.

Note

Even though the app you created has only NumPy as dependency, you can use the provided clientapp.Dockerfile and serverapp.Dockerfile to create the corresponding images for any Flower app when going from simulation to deployment. The RUN command installs all the necessary dependencies for your app to run and removes the flwr[simulation] dependency while building the Docker images.

clientapp.Dockerfile

# clientapp.Dockerfile
FROM flwr/clientapp:1.18.0

WORKDIR /app

COPY pyproject.toml .
RUN sed -i 's/.*flwr\[simulation\].*//' pyproject.toml \
    && python -m pip install -U --no-cache-dir .

ENTRYPOINT ["flwr-clientapp"]

serverapp.Dockerfile

# serverapp.Dockerfile
FROM flwr/serverapp:1.18.0

WORKDIR /app

COPY pyproject.toml .
RUN sed -i 's/.*flwr\[simulation\].*//' pyproject.toml \
   && python -m pip install -U --no-cache-dir .

ENTRYPOINT ["flwr-serverapp"]

Once we have created the required Dockerfiles, we build the Docker Images as follows:

Important

Before running the commands below, make sure Docker is installed and it is up running. The --platform type is set to linux/amd64, because when using the Autopilot mode, all Pods in the Kubernetes cluster (by default) are deployed with an amd64-based architecture.

# ServerApp
docker build --platform linux/amd64 -f serverapp.Dockerfile -t flower_numpy_example_serverapp:0.0.1 .

# ClientApp
docker build --platform linux/amd64 -f clientapp.Dockerfile -t flower_numpy_example_clientapp:0.0.1 .

Tag Docker Images

Before we are able to push our two newly locally created Docker images, we need to tag them with the Google Artifact Registry repository name and image name we created during the previous steps. If you have followed the earlier naming suggestions, the the repository name is flower-gcp-example-artifacts, the local Docker images names are flower_numpy_example_serverapp:0.0.1 and flower_numpy_example_numpy:0.0.1, and the region is us-central1. Please note that the <YOUR_PROJECT_ID> is different from user to user so in the commands below we use the <YOUR_PROJECT_ID> placeholder. Putting all this together, the final commands you need to run to tag the ServerApp and ClientApp Docker images are:

# docker tag YOUR_IMAGE_NAME YOUR_REGION-docker.pkg.dev/YOUR_PROJECT_ID/YOUR_REPOSITORY_NAME/YOUR_IMAGE_NAME:YOUR_TAG

# ServerApp
# please change <YOUR_PROJECT_ID> to point to your project identifier
docker tag flower_numpy_example_serverapp:0.0.1 us-central1-docker.pkg.dev/<YOUR_PROJECT_ID>/flower-gcp-example-artifacts/flower_numpy_example_serverapp:0.0.1

# ClientApp
# please change <YOUR_PROJECT_ID> to point to your project identifier
docker tag flower_numpy_example_clientapp:0.0.1 us-central1-docker.pkg.dev/<YOUR_PROJECT_ID>/flower-gcp-example-artifacts/flower_numpy_example_clientapp:0.0.1

Push Docker Images

Once our images are tagged correctly, you can push them to your Artifact Registry repository using the docker push command with the tagged name:

# docker push YOUR_REGION-docker.pkg.dev/<YOUR_PROJECT_ID>/YOUR_REPOSITORY_NAME/YOUR_IMAGE_NAME:YOUR_TAG

# ServerApp
# please change <YOUR_PROJECT_ID> to point to your project identifier
docker push us-central1-docker.pkg.dev/<YOUR_PROJECT_ID>/flower-gcp-example-artifacts/flower_numpy_example_serverapp:0.0.1

# ClientApp
# please change <YOUR_PROJECT_ID> to point to your project identifier
docker push us-central1-docker.pkg.dev/<YOUR_PROJECT_ID>/flower-gcp-example-artifacts/flower_numpy_example_clientapp:0.0.1

Deploy Flower Infrastructure

Before running our Flower app, we first need to deploy our Pods on the Kubernetes cluster.

In this step, we shall deploy six Pods: 1x SuperLink, 2x SuperNode, 2x ClientApp, and 1x ServerApp. To achieve this, below we provide the definition of the six yaml files that are necessary to deploy the Pods on the cluster and which are passed to kubectl, and a helper k8s-deploy.sh script, which will deploy the Pods.

superlink-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: superlink
spec:
  replicas: 1
  selector:
    matchLabels:
      app: superlink
  template:
    metadata:
      labels:
        app: superlink
    spec:
      containers:
      - name: superlink
        image: flwr/superlink:1.18.0
        args:
          - "--insecure"
          - "--isolation"
          - "process"
        ports:  # which ports to expose/available
        - containerPort: 9091
        - containerPort: 9092
        - containerPort: 9093
---
apiVersion: v1
kind: Service
metadata:
  name: superlink-service
spec:
  selector:
    app: superlink
  ports:  # like a dynamic IP routing table/mapping that routes traffic to the designated ports
  - protocol: TCP
    port: 9091   # Port for ServerApp connection
    targetPort: 9091  # the SuperLink container port
    name: superlink-serverappioapi
  - protocol: TCP
    port: 9092   # Port for SuperNode connection
    targetPort: 9092  # the SuperLink container port
    name: superlink-fleetapi
  - protocol: TCP
    port: 9093   # Port for Flower app submission
    targetPort: 9093  # the SuperLink container port
    name: superlink-execapi
  type: LoadBalancer  # balances workload, makes the service publicly available

supernode-1-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: supernode-1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: supernode-1
  template:
    metadata:
      labels:
        app: supernode-1
    spec:
      containers:
      - name: supernode
        image: flwr/supernode:1.18.0
        args:
          - "--insecure"
          - "--superlink"
          - "superlink-service:9092"
          - "--clientappio-api-address"
          - "0.0.0.0:9094"
          - "--isolation"
          - "process"
        ports:
        - containerPort: 9094
---
apiVersion: v1
kind: Service
metadata:
  name: supernode-1-service
spec:
  selector:
    app: supernode-1
  ports:
  - protocol: TCP
    port: 9094
    targetPort: 9094

supernode-2-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: supernode-2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: supernode-2
  template:
    metadata:
      labels:
        app: supernode-2
    spec:
      containers:
      - name: supernode
        image: flwr/supernode:1.18.0
        args:
          - "--insecure"
          - "--superlink"
          - "superlink-service:9092"
          - "--clientappio-api-address"
          - "0.0.0.0:9094"
          - "--isolation"
          - "process"
        ports:
        - containerPort: 9094
---
apiVersion: v1
kind: Service
metadata:
  name: supernode-2-service
spec:
  selector:
    app: supernode-2
  ports:
  - protocol: TCP
    port: 9094
    targetPort: 9094

serverapp-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: serverapp
spec:
  replicas: 1
  selector:
    matchLabels:
      app: serverapp
  template:
    metadata:
      labels:
        app: serverapp
    spec:
      containers:
      - name: serverapp
        # please change <YOUR_PROJECT_ID> to point to your project identifier
        image: us-central1-docker.pkg.dev/<YOUR_PROJECT_ID>/flower-gcp-example-artifacts/flower_numpy_example_serverapp:0.0.1
        args:
          - "--insecure"
          - "--serverappio-api-address"
          - "superlink-service:9091"

clientapp-1-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: clientapp-1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: clientapp-1
  template:
    metadata:
      labels:
        app: clientapp-1
    spec:
      containers:
      - name: clientapp
        # please change <YOUR_PROJECT_ID> to point to your project identifier
        image: us-central1-docker.pkg.dev/<YOUR_PROJECT_ID>/flower-gcp-example-artifacts/flower_numpy_example_clientapp:0.0.1
        args:
          - "--insecure"
          - "--clientappio-api-address"
          - "supernode-1-service:9094"

clientapp-2-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: clientapp-2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: clientapp-2
  template:
    metadata:
      labels:
        app: clientapp-2
    spec:
      containers:
      - name: clientapp
        # please change <YOUR_PROJECT_ID> to point to your project identifier
        image: us-central1-docker.pkg.dev/<YOUR_PROJECT_ID>/flower-gcp-example-artifacts/flower_numpy_example_clientapp:0.0.1
        args:
          - "--insecure"
          - "--clientappio-api-address"
          - "supernode-2-service:9094"

Once you have created the required files, you can use the following k8s-deploy.sh helper script to deploy all the Pods.

Important

Make sure the Flower version you use to deploy the Pods matches the version of your Flower app.

k8s-deploy.sh

#! /bin/bash -l

# Change directory to the yaml files directory
cd "$(dirname "${BASH_SOURCE[0]}")"

kubectl apply -f superlink-deployment.yaml
sleep 0.1

kubectl apply -f supernode-1-deployment.yaml
sleep 0.1

kubectl apply -f supernode-2-deployment.yaml
sleep 0.1

kubectl apply -f ./serverapp-deployment.yaml
sleep 0.1

kubectl apply -f ./clientapp-1-deployment.yaml
sleep 0.1

kubectl apply -f ./clientapp-2-deployment.yaml
sleep 0.1

To see that your Pods are deployed, please go to the Navigation Menu on the Google Console, select Kubernetes Engine and then the Workloads page. The new window that appears will show the status of the Pods under deployment.

Caution

Please wait for a couple of minutes (3' to 5' minutes should be enough) before the Pods are up and running. While Pods resources are being provisioned, some warnings are expected.

Run Flower App

Once all Pods are up and running, we need to get the EXTERNAL_IP of the superlink-service and point our Flower app to use the Kubernetes cluster to submit and execute the job.

To get the EXTERNAL-IP of the superlink-service we run the following command, which will show the NAME, TYPE, CLUSTER-IP, EXTERNAL-IP and PORTS of the service:

kubectl get service superlink-service

After we get the EXTERNAL-IP , we go to the directory of the Flower example, we open the pyproject.toml and then add the following section at the end of the file:

[tool.flwr.federations.gcp-deployment]
address = "<EXTERNAL_IP>:9093" # replace the EXTERNAL_IP with the correct value
insecure = true

Then we can execute the example on the GCP cluster by running:

flwr run . gcp-deployment --stream

Note

Please note that in the current deployment, communication is not encrypted. To enable TLS for secure connections, check the following guide. We will also be updating the current guide soon with more details on how to configure TLS.

If the job is successfully submitted, and executed, then in your console you should see the logs from the run. The output should look like the one shared below.

Expected Output

Loading project configuration...
Success
🎊 Successfully built flower.flower-numpy-example.1-0-0.ba270a25.fab
🎊 Successfully started run 2796207907461390277
INFO :      Starting logstream for run_id `2796207907461390277`
INFO :      Start `flwr-serverapp` process
🎊 Successfully installed flower-numpy-example to /app/.flwr/apps/flower.flower-numpy-example.1.0.0.ba270a25.
INFO :      Starting Flower ServerApp, config: num_rounds=3, no round_timeout
INFO :
INFO :      [INIT]
INFO :      Using initial global parameters provided by strategy
INFO :      Starting evaluation of initial global parameters
INFO :      Evaluation returned no results (`None`)
INFO :
INFO :      [ROUND 1]
INFO :      configure_fit: strategy sampled 2 clients (out of 2)
INFO :      aggregate_fit: received 2 results and 0 failures
WARNING :   No fit_metrics_aggregation_fn provided
INFO :      configure_evaluate: strategy sampled 2 clients (out of 2)
INFO :      aggregate_evaluate: received 2 results and 0 failures
WARNING :   No evaluate_metrics_aggregation_fn provided
INFO :
INFO :      [ROUND 2]
INFO :      configure_fit: strategy sampled 2 clients (out of 2)
INFO :      aggregate_fit: received 2 results and 0 failures
INFO :      configure_evaluate: strategy sampled 2 clients (out of 2)
INFO :      aggregate_evaluate: received 2 results and 0 failures
INFO :
INFO :      [ROUND 3]
INFO :      configure_fit: strategy sampled 2 clients (out of 2)
INFO :      aggregate_fit: received 2 results and 0 failures
INFO :      configure_evaluate: strategy sampled 2 clients (out of 2)
INFO :      aggregate_evaluate: received 2 results and 0 failures
INFO :
INFO :      [SUMMARY]
INFO :      Run finished 3 round(s) in 30.11s
INFO :          History (loss, distributed):
INFO :                  round 1: 0.0
INFO :                  round 2: 0.0
INFO :                  round 3: 0.0
INFO :

Note

Please note that if you terminate or shut down the cluster, and create a new one, the value of the EXTERNAL_IP changes. In that case, you will have to update the pyproject.toml.

Shutdown Flower Infrastructure

If you would like to shutdown all the running pods deployed during this guide, you can use the kubectl delete command and pass the the .yaml file of each pod, as also shown in the helper script below.

k8s-shutdown.sh

#! /bin/bash -l

# Change directory to the yaml files directory
cd "$(dirname "${BASH_SOURCE[0]}")"

kubectl delete -f superlink-deployment.yaml
sleep 0.1

kubectl delete -f supernode-1-deployment.yaml
sleep 0.1

kubectl delete -f supernode-2-deployment.yaml
sleep 0.1

kubectl delete -f ./serverapp-deployment.yaml
sleep 0.1

kubectl delete -f ./clientapp-1-deployment.yaml
sleep 0.1

kubectl delete -f ./clientapp-2-deployment.yaml
sleep 0.1
